Product features
1.DC24V low voltage input, DMX signal input;
2.Zero value detection, automatic calibration (reset) after power-on;
3.360-degree beam angle, rotating, adjustable angle, controllable speed;
4.Can achieve silent operation, noiseless running;
5.Small size and easy installation;
6.Multiple units can be used in series;
7.Can be controlled with Artnet software (MAD-SHOW, MADRIX) and DMX console;
Rotation 360 Degrees 360 degree beam angle
adjustable angle,controllable speed Automatic calibration after power-on to ensure accurate control
Channel Channel description
Channel-1 Control the angle of rotation: the value 0-255 corresponds to 0-360° (channel 3 value 0-15 is valid)
Channel-1 Speed Adjust the speed of angle change (valid when the channel 3 value is 0-15)
Channel-3 Value 0-15 angle mode, channel 1 and channel 2 are valid; value 16-31 is infinite
rotation mode; value 32-255 is built-in effect mode, one effect for every 16 values;
Channel 4 Infinite rotation mode (channel 3 value 16-31), the value 0-126 rotates counterclockwise,
the value 127-128 maintains the current angle, the value 129-255 rotates clockwise;
the fastest is 1 second One lap, the slowest is 5 seconds lap;
Channel 5 value 0-15 to receive software data, external software control; value 16-31 all
Channel-1 Speed Adjust the speed of angle change (valid when the channel 3 value is 0-15)
Channel-3 Value 0-15 angle mode, channel 1 and channel 2 are valid; value 16-31 is infinite
rotation mode; value 32-255 is built-in effect mode, one effect for every 16 values;
Channel 4 Infinite rotation mode (channel 3 value 16-31), the value 0-126 rotates counterclockwise,
the value 127-128 maintains the current angle, the value 129-255 rotates clockwise;
the fastest is 1 second One lap, the slowest is 5 seconds lap;
Channel 5 value 0-15 to receive software data, external software control; value 16-31 all
white; value 32-255 strobe, the larger the value, the faster the strobe frequency;
Channel 6 The value 0-254 is invalid, the value 255 is reset once, waiting for the channel
Channel 6 The value 0-254 is invalid, the value 255 is reset once, waiting for the channel
to be released, the highest priority

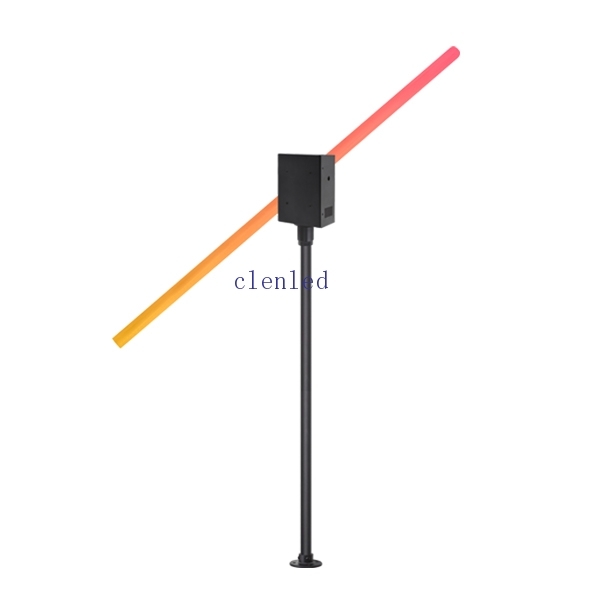

Rotating 3D LED tube installation
Fix the led tube with motor with screws
Install the pillar and orientation adjuster
Connect the input of rotating led tube with controller’s XLR cable
Connect multiple rotating led tube together with T-cable
Connect controller with led tube
Connecting the output of the controller with the input end of rotation 3D LED tube with XLR cabe;
Connecting the computer and the controller signal input port through network cable
Multiple units can be used in cascade
T-line series connection, each port of the controller can be cascaded 6 units of 1 meter rotating led tube
Regular length
LED 360 Degree tube(MM) 1000 1200 1500
360 tube pixel(PCS) 24 28 36
Column length(MM) 700 800 900
