CNC Kinetic Motors

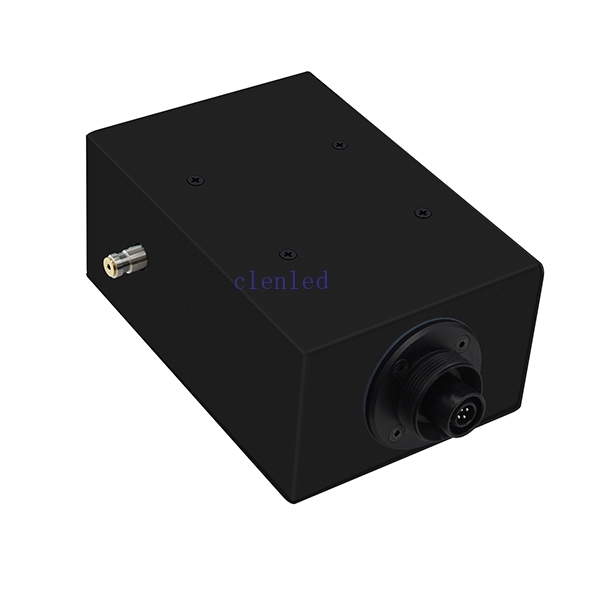

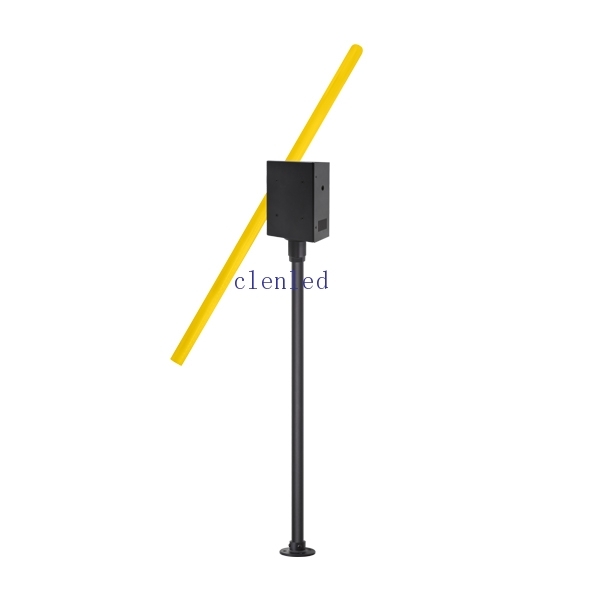

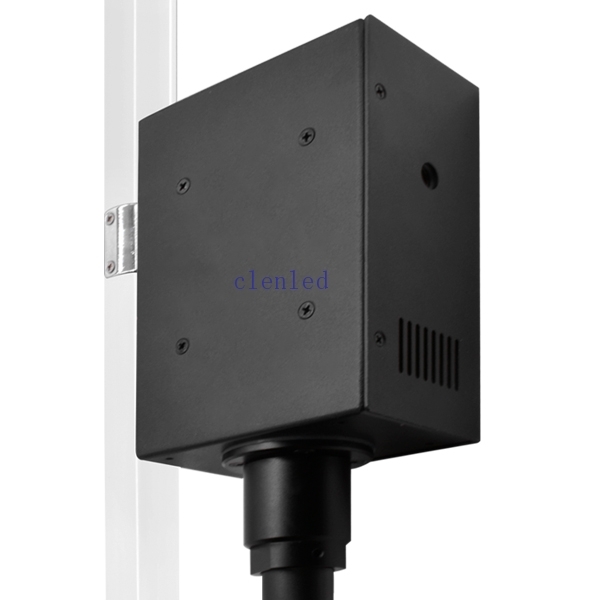

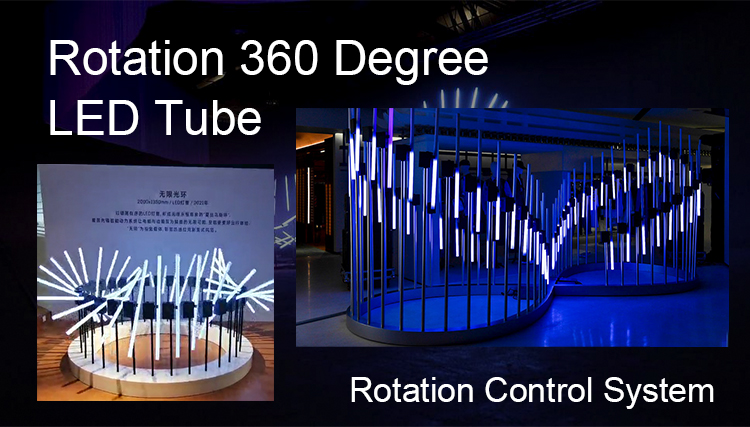

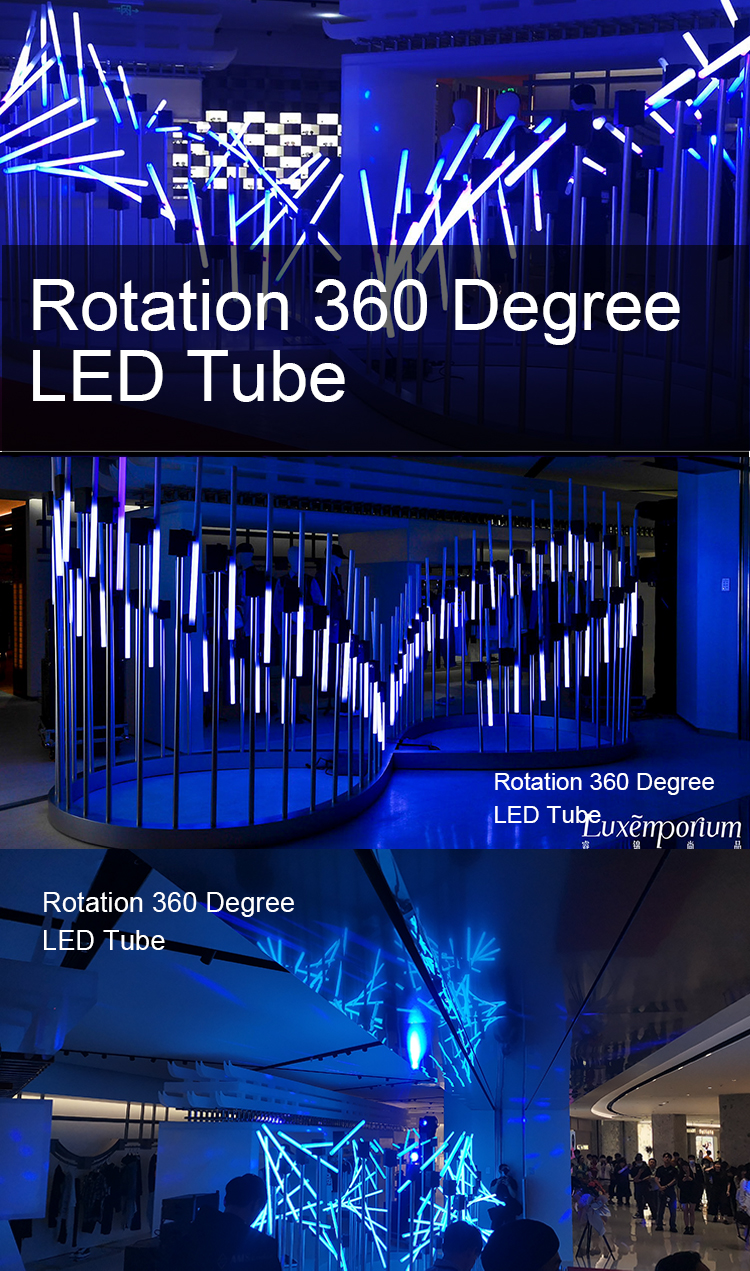

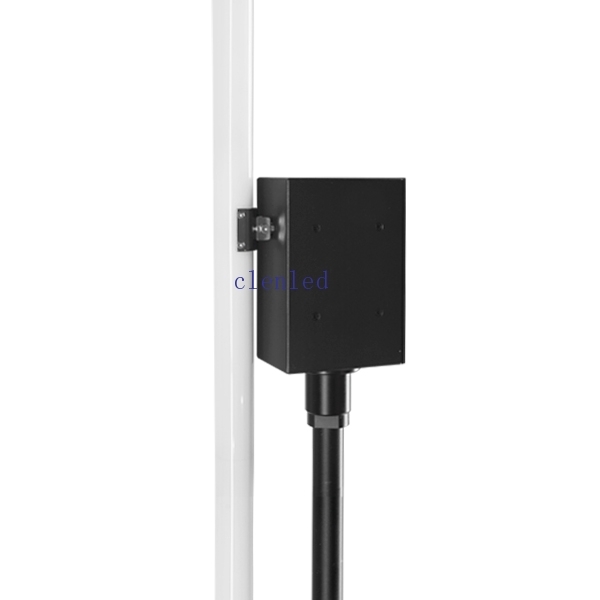

1m Rotation 360 Degree LED Tube

Product number:   CL-MT02-1
Working Voltage:     DC24V
Power:                     72W
Cascade number:    6PCS
Control mode:          DMX512
Product weight:        2KG
Pixel
                 24pcs
Product size:            140*110*72MM
Product color:           Black
Product material:       Aluminum
3D tube size:            1000*D32MM

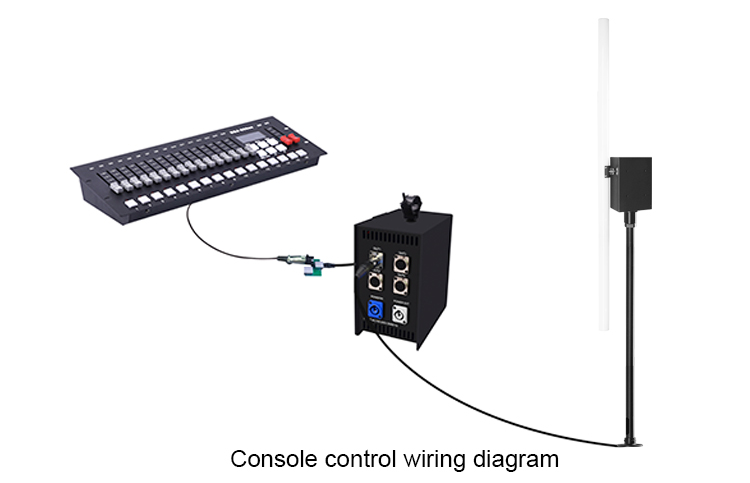

Console control MT02 video





    Product features
    1.DC24V low voltage input, DMX signal input;
    2.Zero value detection, automatic calibration (reset) after power-on;
    3.360-degree beam angle, rotating, adjustable angle, controllable speed;

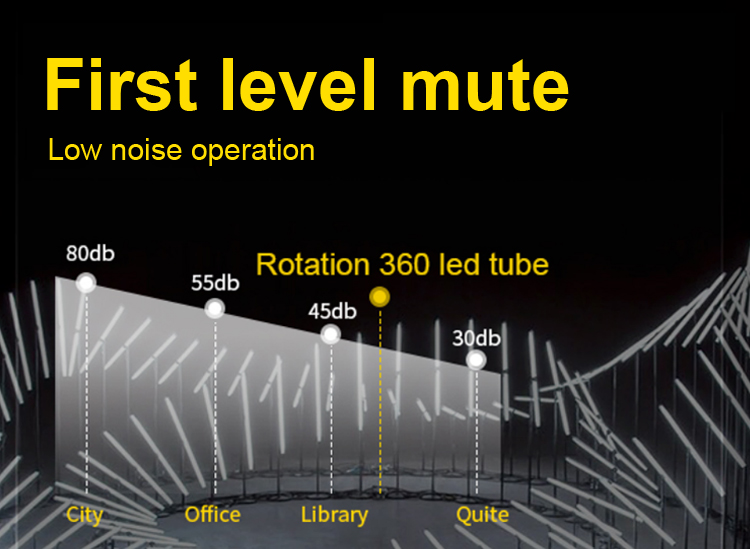

    4.Can achieve silent operation, noiseless running;
    5.Small size and easy installation;
    6.Multiple units can be used in series;
    7.Can be controlled with Artnet software (MAD-SHOW, MADRIX) and DMX console;

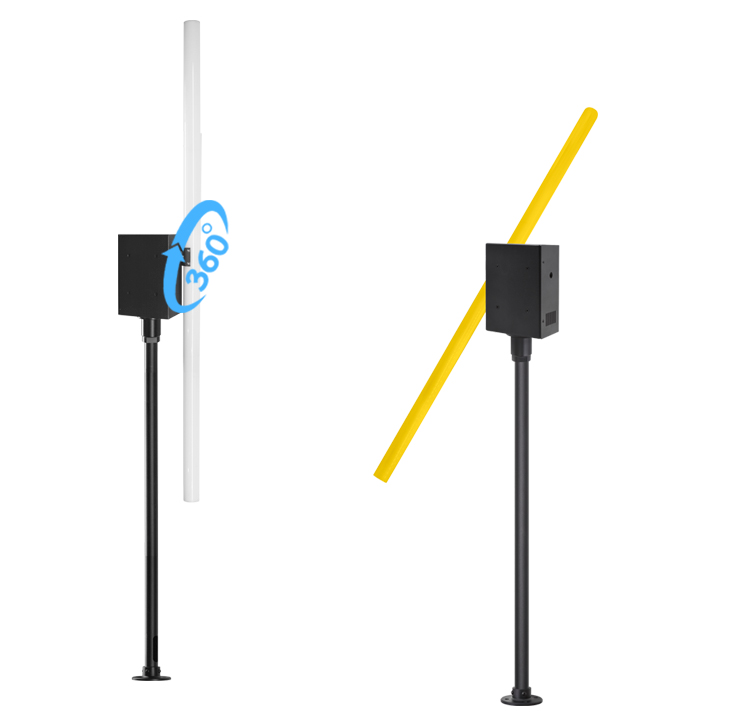

    Rotation 360 Degrees        360 degree beam angle
    adjustable angle,controllable speed            Automatic calibration after power-on to ensure accurate control

    Channel     Channel description
    Channel-1             Control the angle of rotation: the value 0-255 corresponds to 0-360° (channel 3 value 0-15 is valid)

    Channel-1             Speed Adjust the speed of angle change (valid when the channel 3 value is 0-15)


    Channel-3             Value 0-15 angle mode, channel 1 and channel 2 are valid; value 16-31 is
    infinite
                                  rotation mode; value 32-255 is built-in effect mode, one effect for every 16 values;


    Channel 4              Infinite rotation mode (channel 3 value 16-31), the value 0-126 rotates
    counterclockwise,
                                  the value 127-128 maintains the current angle, the value
    129-255 rotates clockwise;
                                  the fastest is 1 second One lap, the slowest is 5 seconds lap;


    Channel 5              value 0-15 to receive software data, external software control; value 16-31 all
                                   white; value 32-255 strobe, the larger the value, the faster the strobe frequency;

    Channel 6              The value 0-254 is invalid, the value 255 is reset once, waiting for the channel
                                   to be released, the highest priority

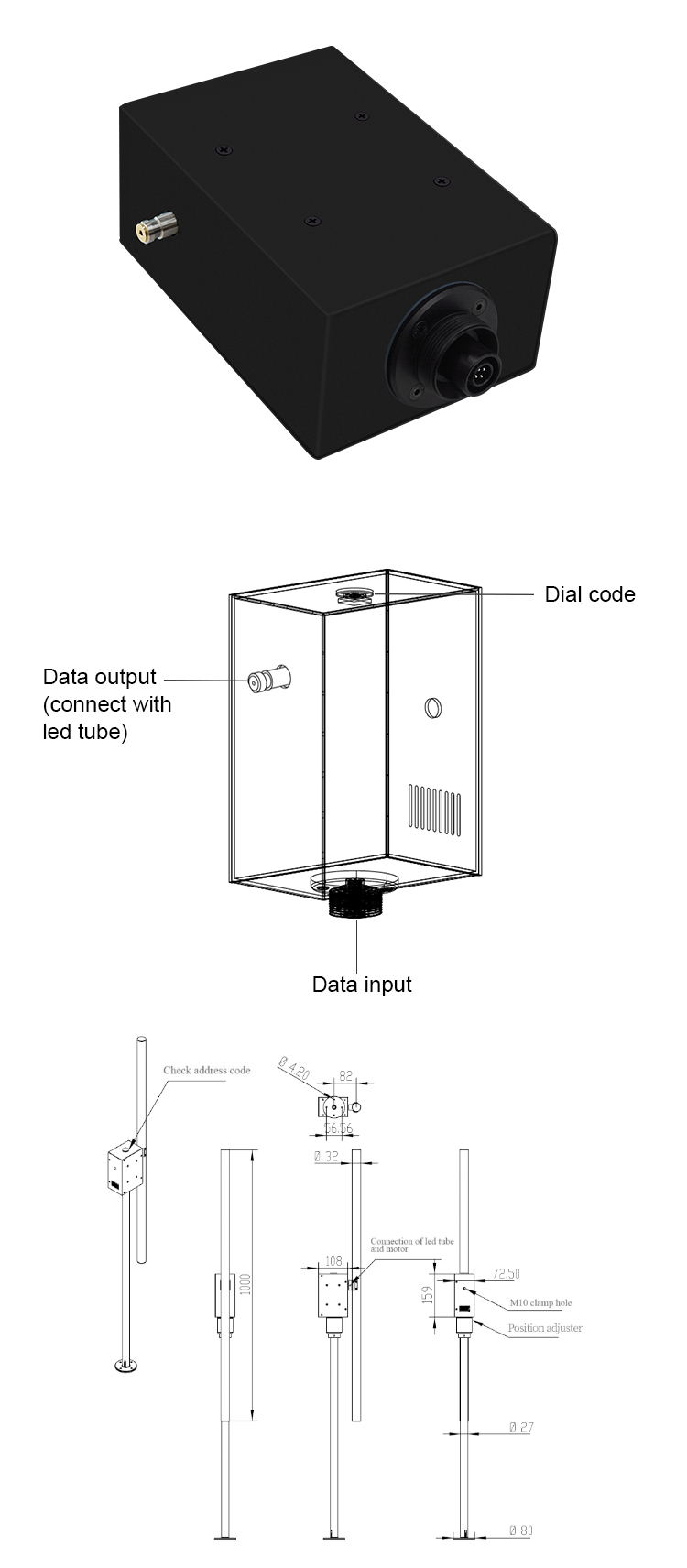

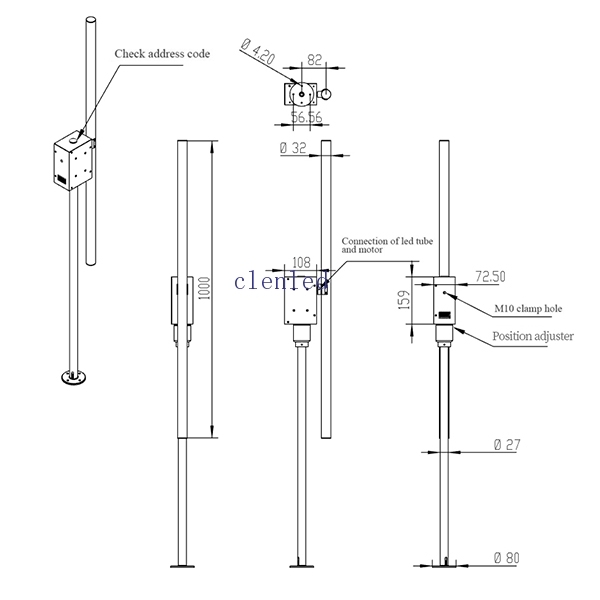

    Rotating 3D LED tube installation

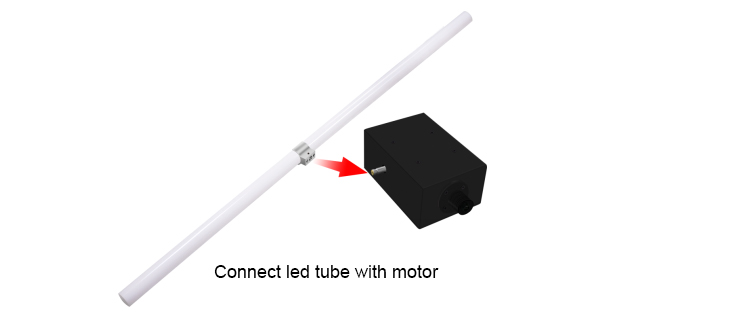

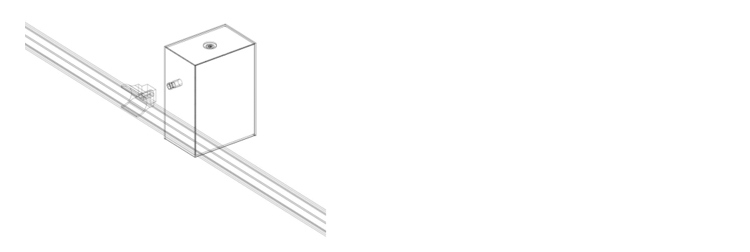

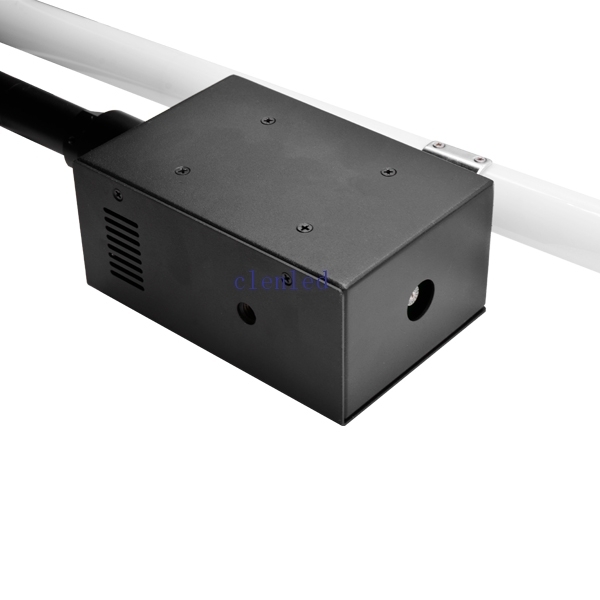

    Fix the led tube with motor with screws

    The input is connected to extension cable;

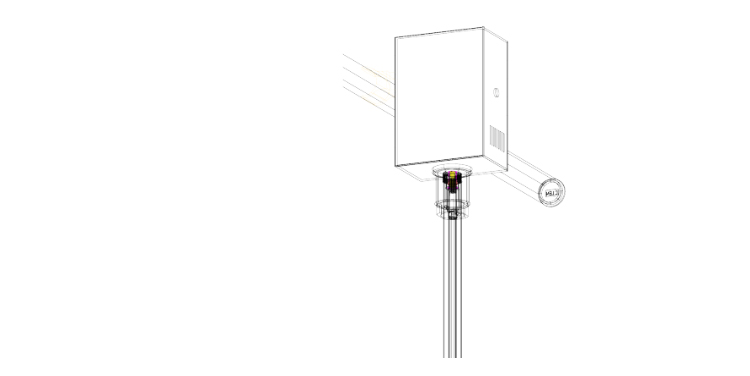

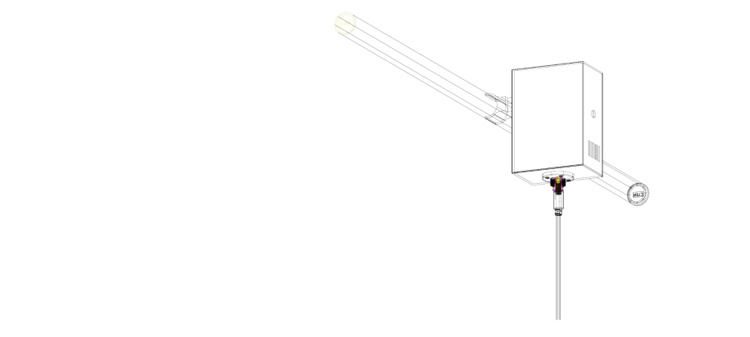

    Install the pillar and orientation adjuster




    Connect the input of rotating led tube with controller’s XLR cable


    Connect multiple rotating led tube together with T-cable

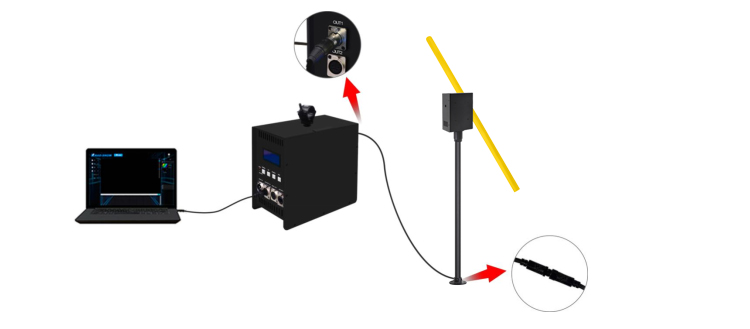

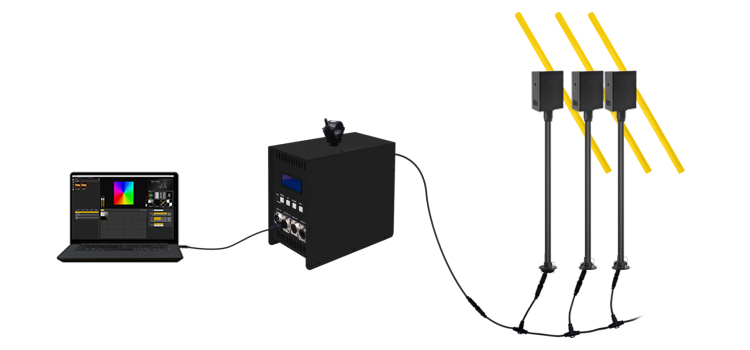

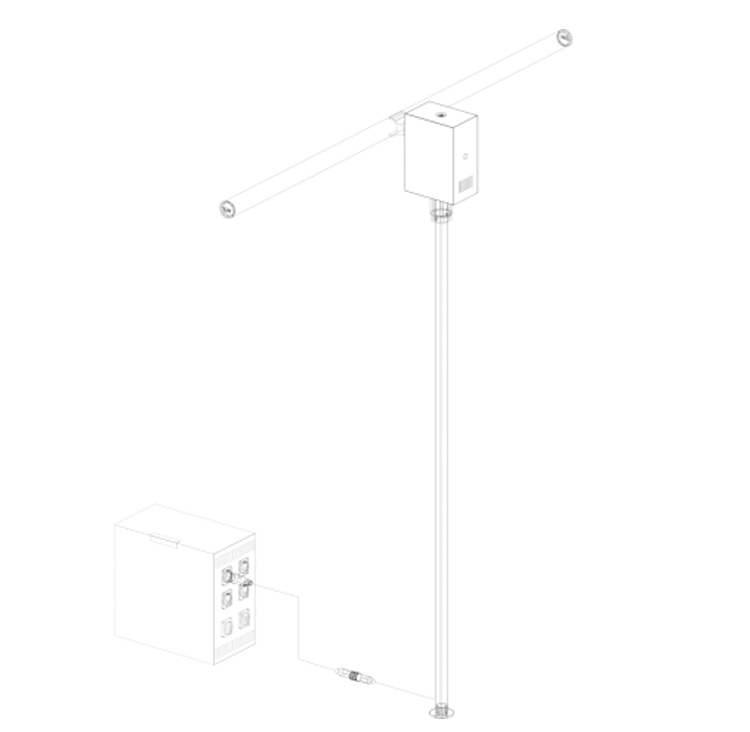

    Connect controller with led tube

    Connecting the output of the controller with the input end of rotation 3D LED tube with XLR cabe;


    Connecting the computer and the controller signal input port through network cable

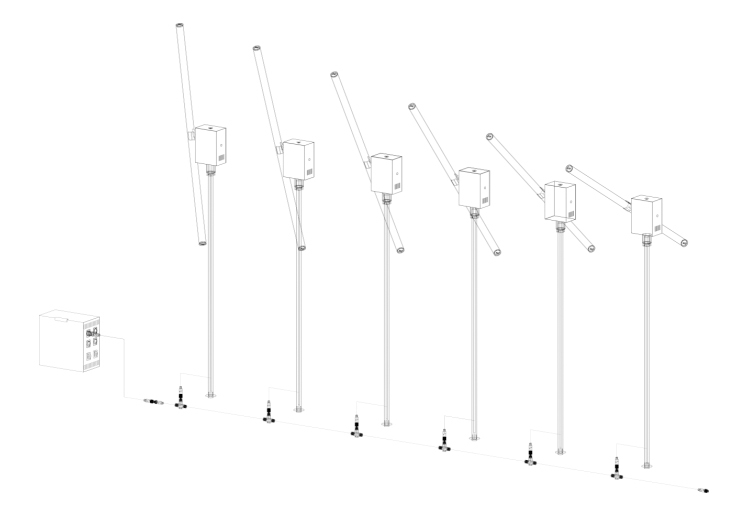

    Multiple units can be used in cascade



    T-line series connection, each port of the controller can be cascaded 6 units of 1 meter rotating led tube



    Regular length


    LED 360 Degree tube(MM)                1000              1200             1500

    360 tube pixel(PCS)                             24                  28                 36

    Column length(MM)                             700                800              900
