Working voltage: AC110-220V                         Output port: 4PCS
Power: 10W                                                     Working mode: ARTNET/SD Card
Control mode: ART-NET/DMX/sACN               cascade units: 254
Port loading points: 4*680PCS                        Product weight: 0.6KG
Product size(L*W*H): 228*126*55MM

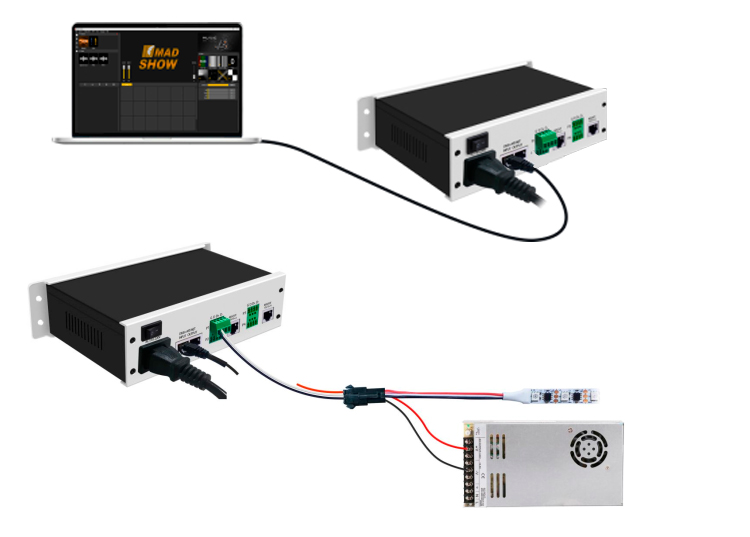

ARTNET mode connect controller

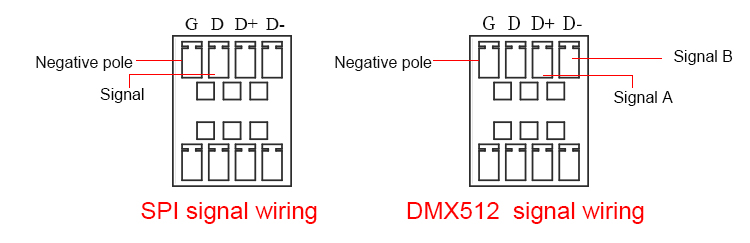

Connect the output port of the controller and the input port of the light strip (Pay attention to the wiring sequence:
G is the negative wire, D is the signal wire; led strip red is positive, black is negative, and white is signal )

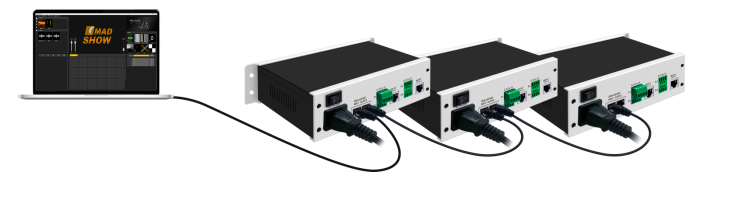

Multiple units can be used in cascade
Connect the network cable to the output port and the input port of the next controller

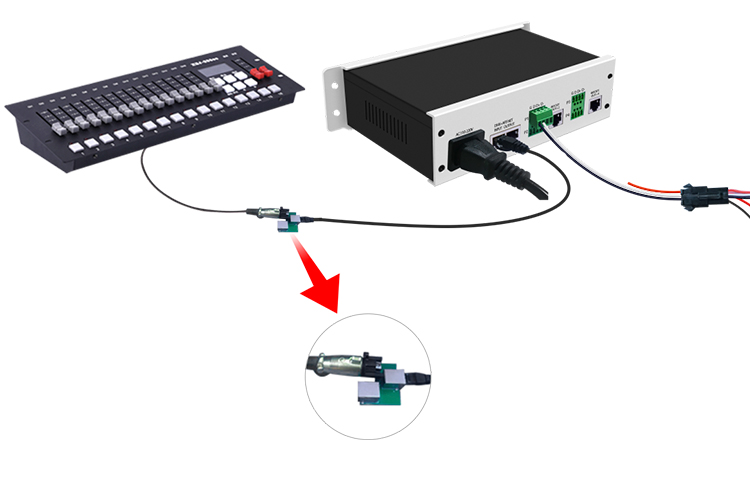

DMX mode connect controller
Connect the console and the controller through the signal conversion board

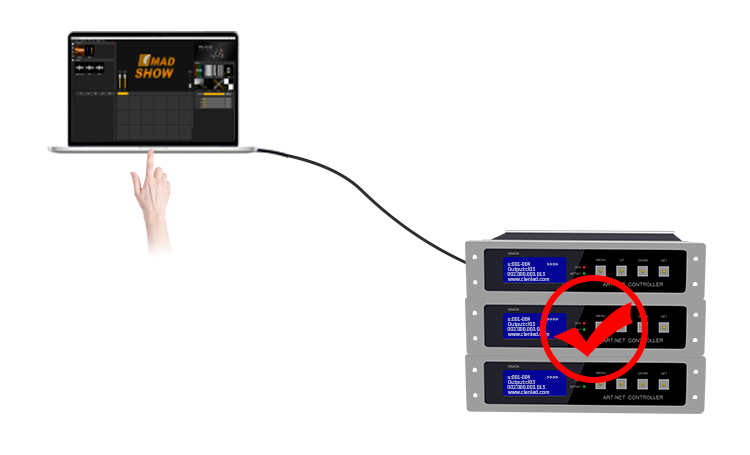

RDM remote control
Breaking the distance limitation and achieving long-distance RDM control
Can remotely set and modify the parameters and modes of the controller

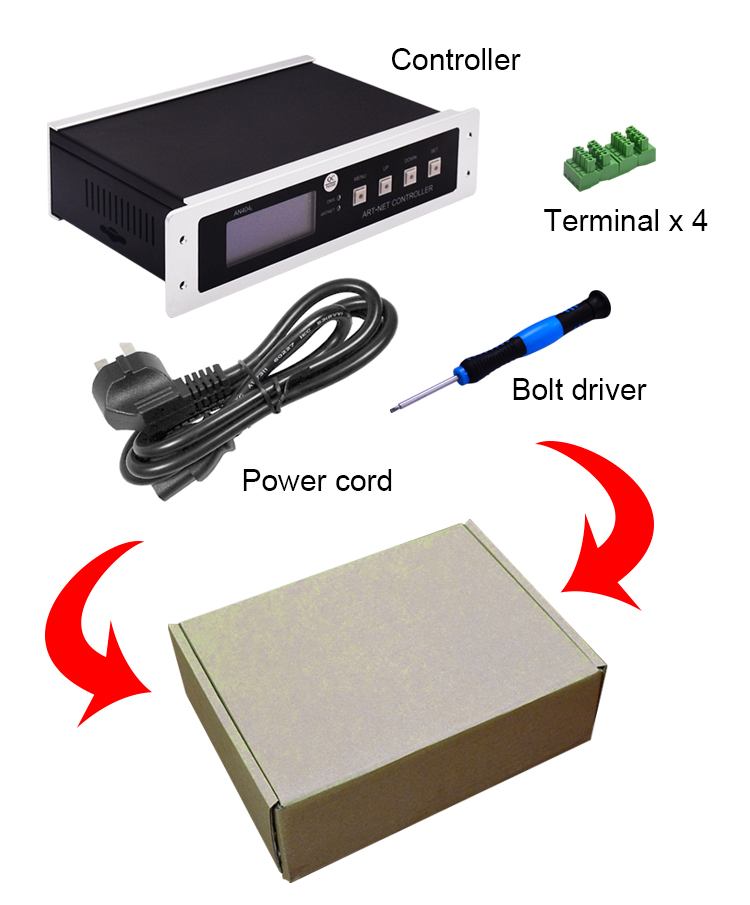

Product packaging
