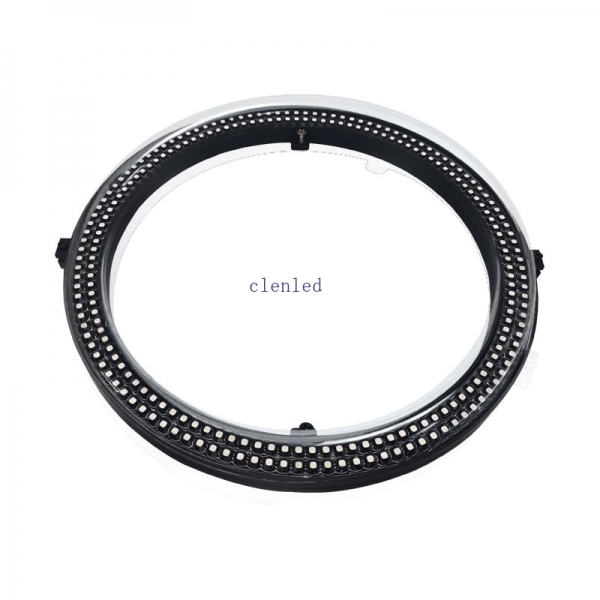

Working voltage: DC24V LED Type:3535RGB
Power: 23W IC: DMX512
Control mode: ART-NET/DMX Pixel: 60PCS
LED quantity(PCS): 240PCS Channel :RGB
Grey scale: 65536 Product weight:0.45KG
Product size:10inch
T-cable series connection, convenient and simple;

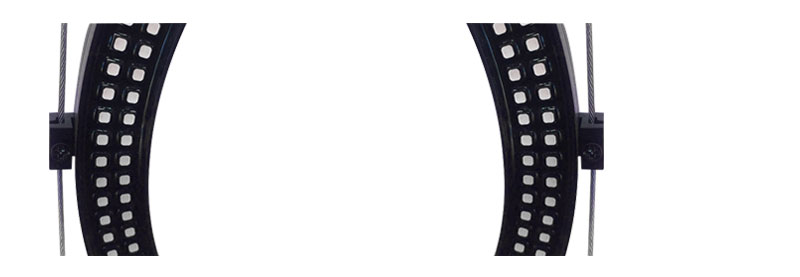

Steel wire fixation on both sides
Steel wire suspension can be installed on both sides of the pixel ring

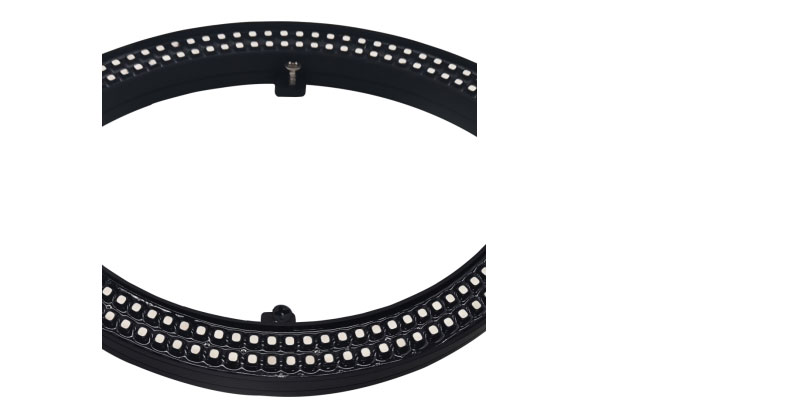

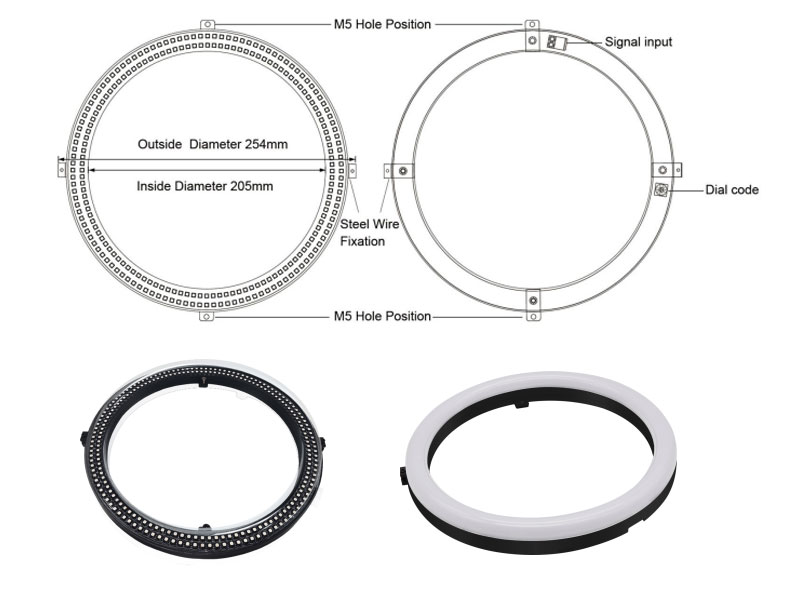

Screw hole fixing
The pixel ring is fixed with screws on both sides；

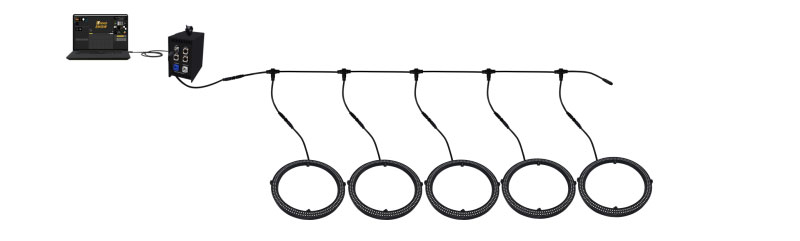

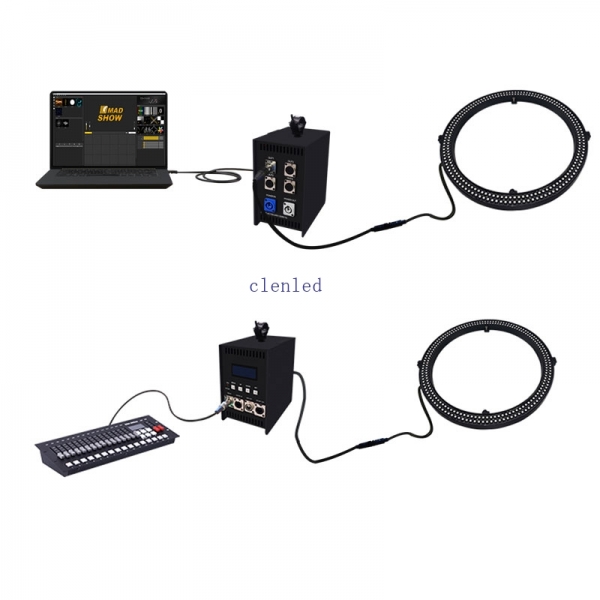

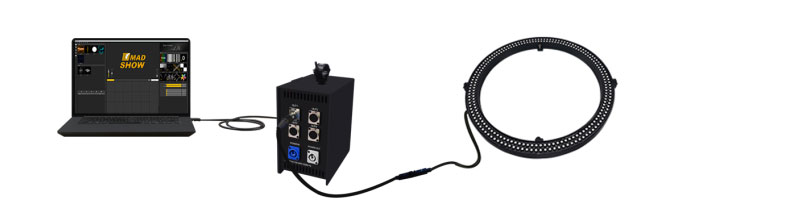

ARTNET Mode connection controller controls pixel ring

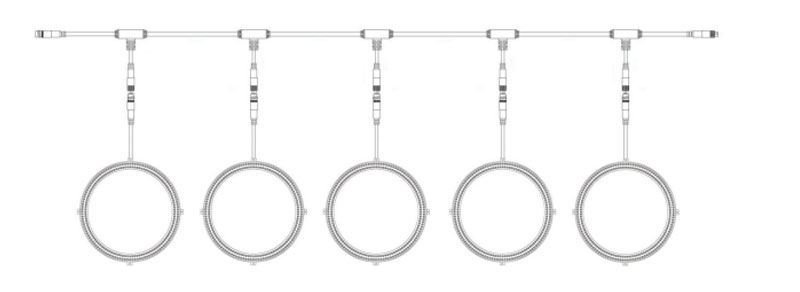

Use T-cable to connect multiple pixel rings in series;

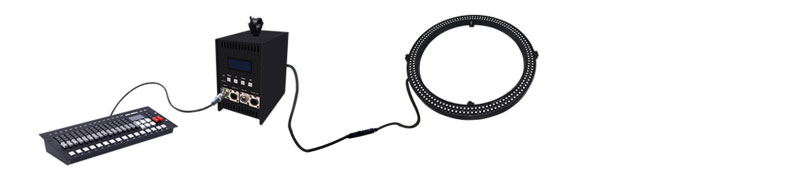

DMX Mode connection controller controls pixel ring

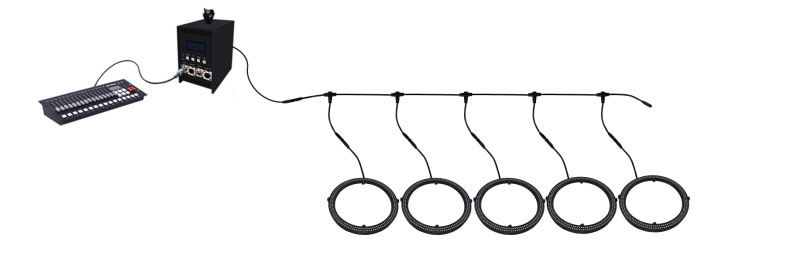

Use T-cable to connect multiple pixel rings in series;

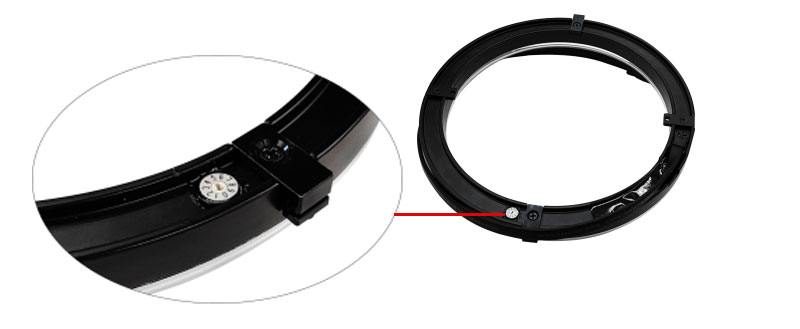

Dial code
Each port of the controller can cascade up to 10 pixel rings at most.
There are dials on the back of the pixel rings, ranging from 0 to 9 in
sequence. When the dials are the same, the display effect of the
pixel rings is also the same.
