Working voltage: DC24V Diameter of ring: 1030MM
Power: 17W Product weight: 5KG
LED quantity: 14PCS Cascade number：6PCS
Pixel quantity: 2PCS Channel：RGB
product : 160*110*72MM Control mode：DMX512
DC24V low voltage input, DMX signal input;
Zero value detection, automatic calibration (reset) after power-on;
360-degree rotating, adjustable angle, controllable speed;
Can achieve silent operation, noiseless running;
Small size and easy installation;
Multiple units can be used in series;
Can be controlled with Artnet software (MAD-SHOW, MADRIX)
and DMX console.
Support program remote upgrade;
Rotation pixel fan installation
① Fix the fan on motor with screw
② The input is connected to extension cable;
③Install the pillar and orientation adjuster

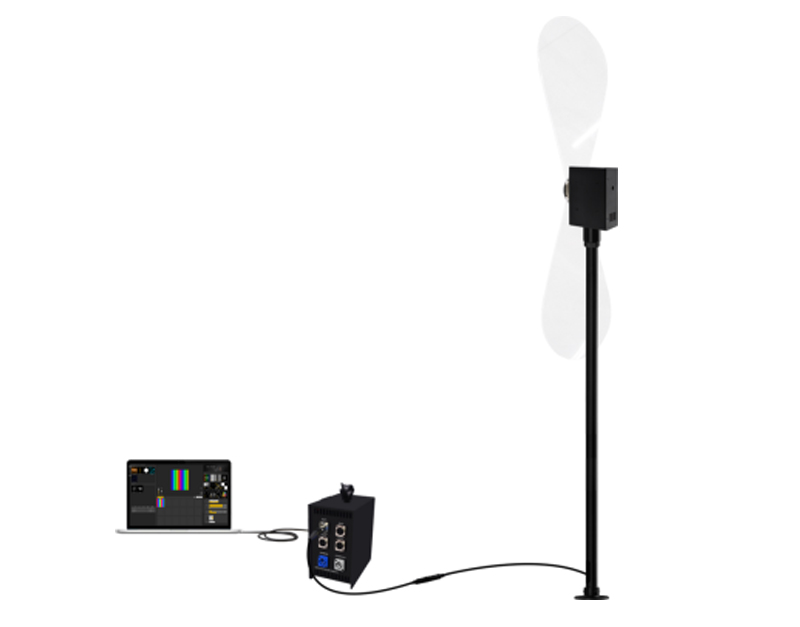

Connect the input of rotating pixel fan with controller’s XLR cable
Connecting the computer and the controller signal input port
Connecting the computer and the controller signal input port
through network cable
Connecting the output of the controller with the input end of the
Connecting the output of the controller with the input end of the
rotating pixel fan with XLR cable
Connecting the output of the controller with the input end of the rotating pixel fan with XLR cable
T-line series connection, each port of the controller can be cascaded 6 units rotating pixel fan；
DMX Code description
DMX code Parameter Action start channel light start channel Channel rang
0 Program pgrade — — —
A 1 7 1-78
B 79 85 79-156
C 157 163 157-234
D 235 241 235-512
E 313 319 313-390
F 391 397 391-468
DMX Channel
Channel Function Function description
Channel 1 Angle mode Control the angle of rotation: the value
0-255 corresponds to 0-360° (channel 3
value 0-15 is valid)
Channel 2 Speed Speed Adjust the speed of angle change
Channel 2 Speed Speed Adjust the speed of angle change
(valid when the channel 3 value is 0-15)
Channel 3 Mode selection Value 0-15 angle mode, channel 1 and channel
Channel 3 Mode selection Value 0-15 angle mode, channel 1 and channel
2 are valid; value 16-31 is infinite rotation mode;
value 32-255 is built-in effect mode, one effect
for every 16 values;
Channel 4 Forward and reverse + speed nfinite rotation mode (channel 3 value 16-31),
Channel 4 Forward and reverse + speed nfinite rotation mode (channel 3 value 16-31),
the value 0-126 rotates counterclockwise, the
value 127-128 maintains the current angle, the
value 129-255 rotates clockwise; the fastest is
1 second One lap, the slowest is 5 seconds lap;
Channel 5 Light strobe value 0-15 to receive software data, external
Channel 5 Light strobe value 0-15 to receive software data, external
software control; value 16-31 all white; value
32-255 strobe, the larger the value, the faster
the strobe frequency;
Channel 6 Reset The value 0-254 is invalid, the value 255 is
Channel 6 Reset The value 0-254 is invalid, the value 255 is
reset once, waiting for the channel to be
released, the highest priority
