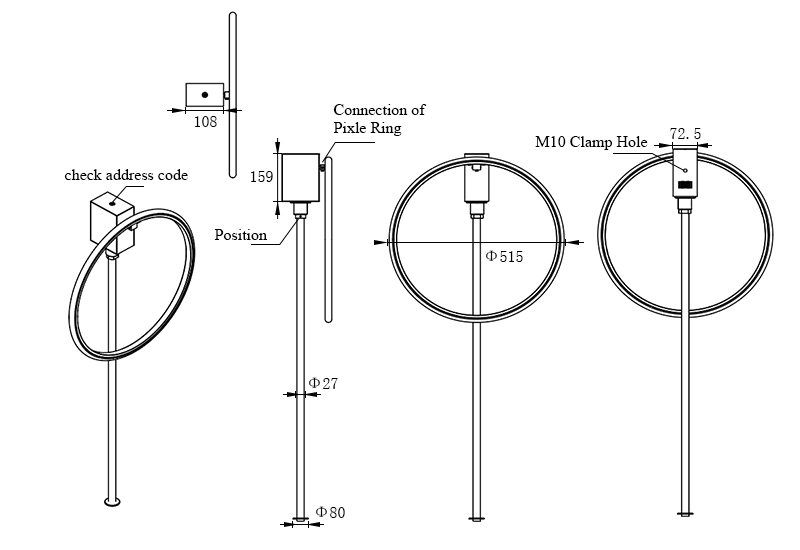

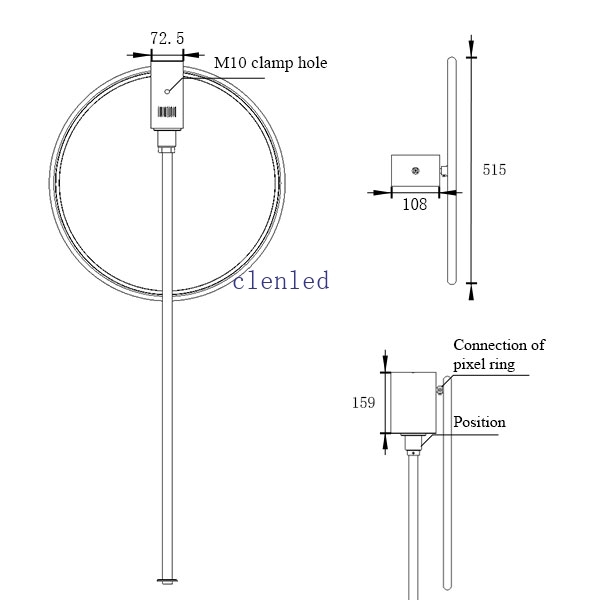

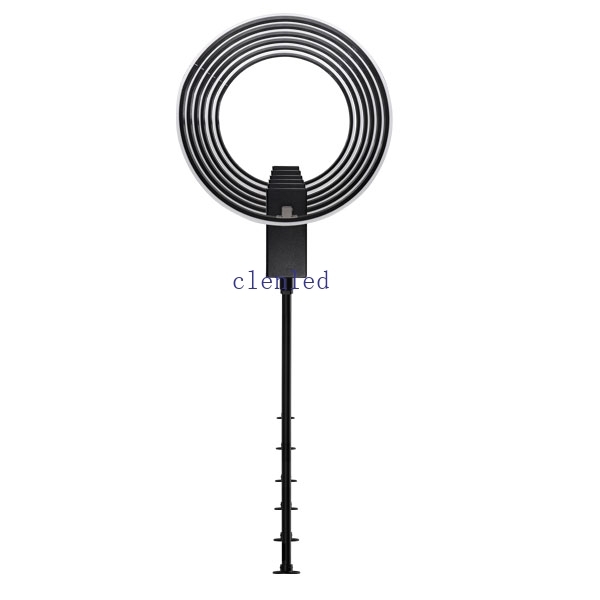

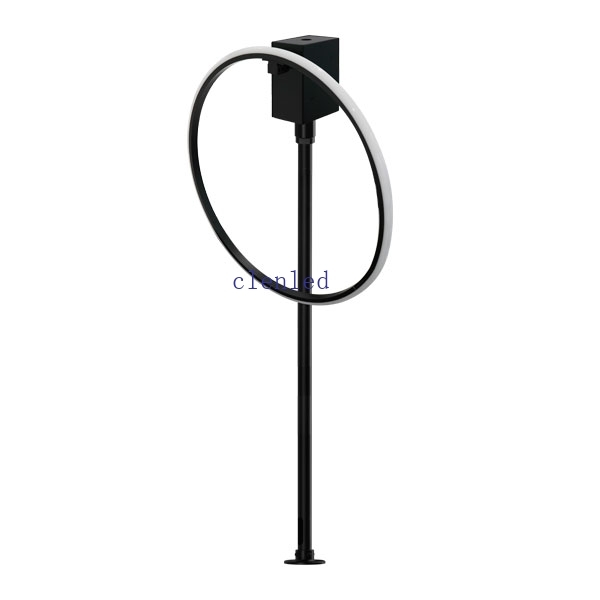

Working voltage: DC24V Diameter of ring: 515MM
Power: 26W Product weight: 3KG
LED quantity: 96PCS Cascade number：6PCS
Pixel quantity: 24PCS Channel：RGB
Product : 160*110*72MM Control mode：DMX512
DC24V low voltage input, DMX signal input;
Zero value detection, automatic calibration (reset) after power-on;

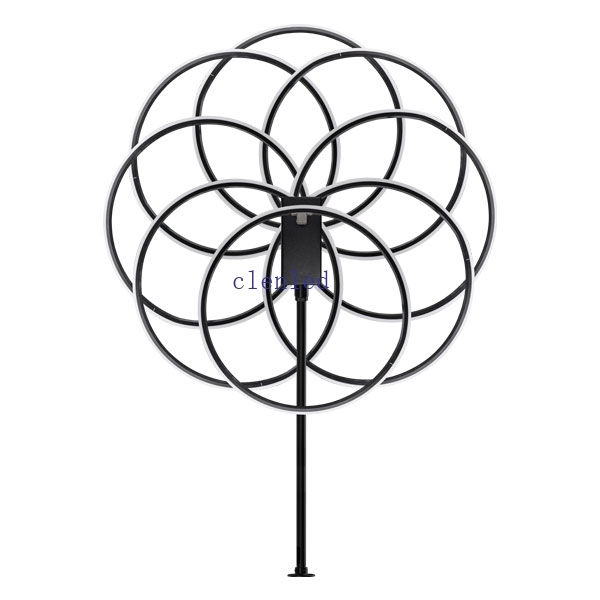

360-degree rotating, adjustable angle, controllable speed;
Can achieve silent operation, noiseless running;

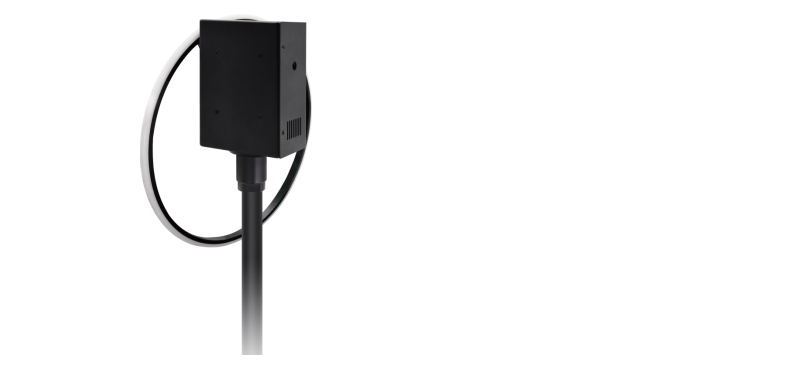

Small size and easy installation;
Multiple units can be used in series;
Can be controlled with Artnet software (MAD-SHOW, MADRIX)
and DMX console.
Support program remote upgrade;

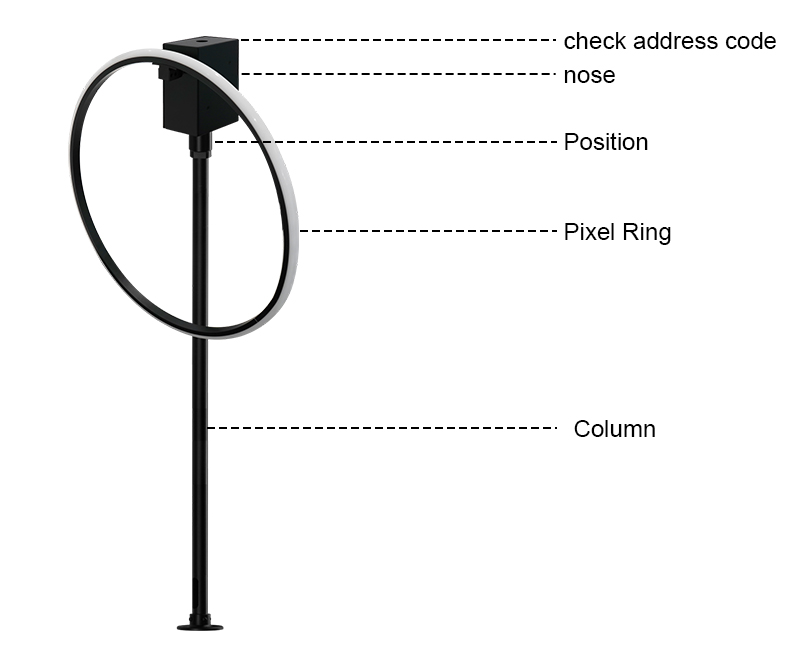

Rotation ring installation

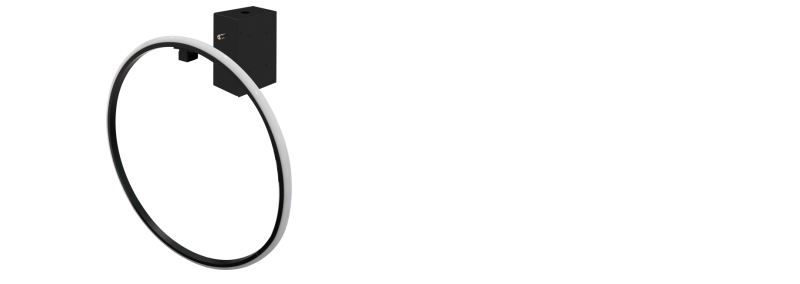

① Fix the ring on motor with screw

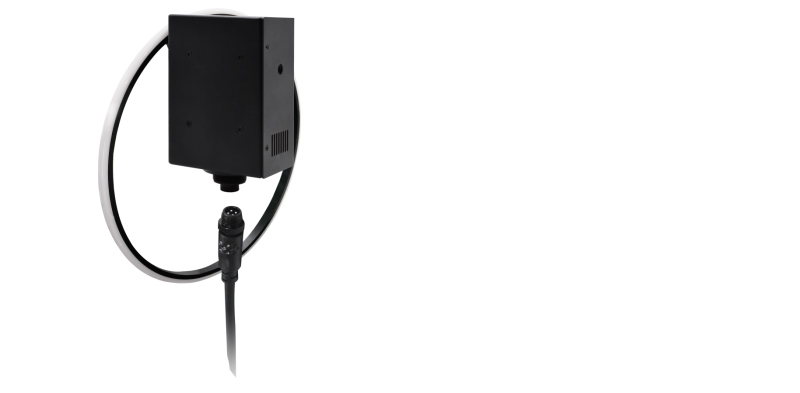

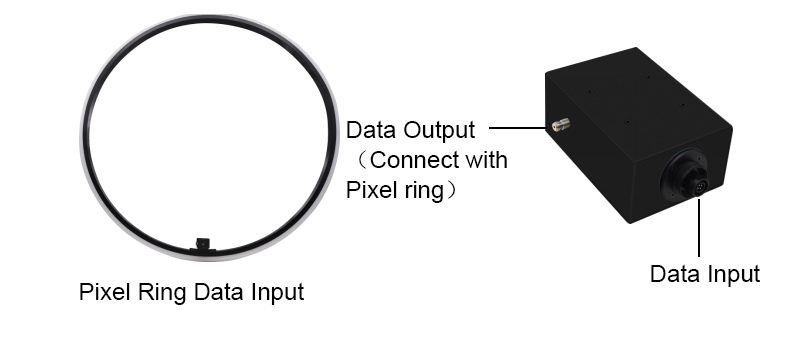

② The input is connected to extension cable;
③Install the pillar and orientation adjuster

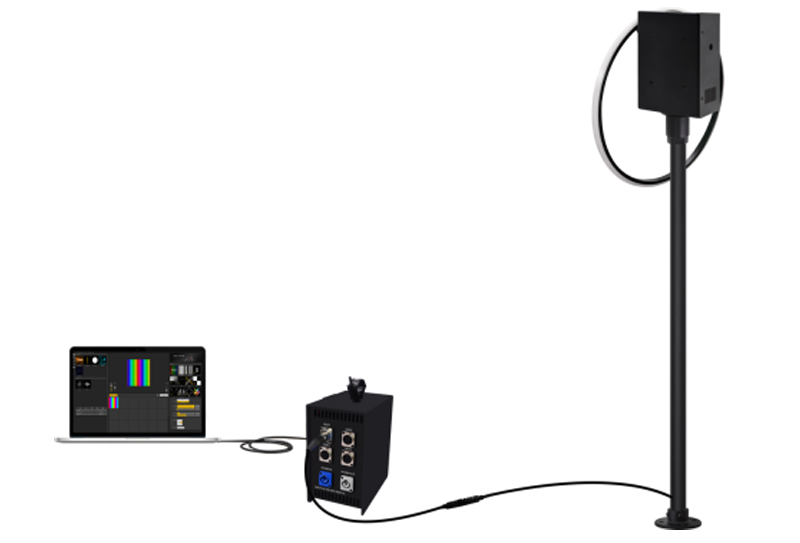

Connect the input of rotating rings with controller’s XLR cable
Connecting the computer and the controller signal input port through
network cable
Connecting the output of the controller with the input end of the
rotating rings with XLR cable

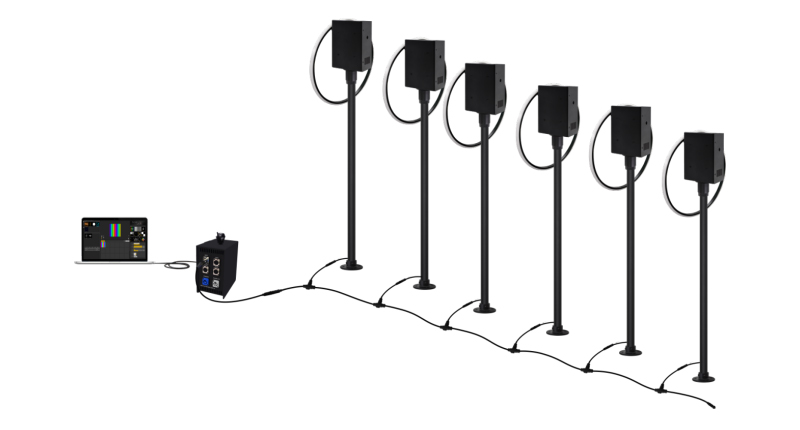

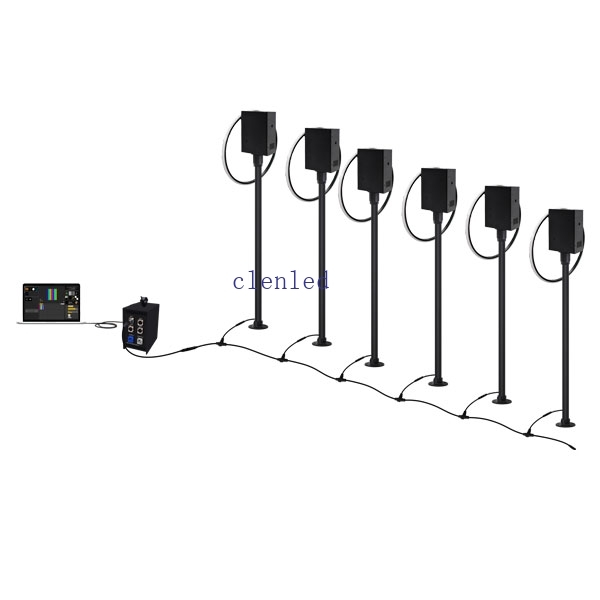

Connect multiple rotating rings together with T-cable
Connect multiple rotating rings together with T-cable
T-line series connection, each port of the controller can be cascaded 6 units of 500mm rotating rings
DMX Code description
DMX code Parameter Action start channel light start channel Channel rang
0 Program pgrade — — —
A 1 7 1-78
B 79 85 79-156
C 157 163 157-234
D 235 241 235-312
E 313 319 313-390
F 391 397 391-468
DMX Channel
Channel Function Function description
Channel 1 Angle mode Control the angle of rotation: the value 0-255 corresponds to 0-360°
(channel 3 value 0-15 is valid)
Channel 2 Speed Speed Adjust the speed of angle change (valid when the channel
3 value is 0-15)
Channel 3 Mode selection Value 0-15 angle mode, channel 1 and channel 2 are valid; value
16-31 is infiniterotation mode; value 32-255 is built-in effect mode,
one effect for every 16 values;
Channel 4 Forward and reverse + speed Infinite rotation mode (channel 3 value 16-31), the value 0-126
rotates counterclockwise,the value 127-128 maintains the current
angle, the value 129-255 rotates clockwise;the fastest is 1 second
One lap, the slowest is 5 seconds lap;
Channel 5 Light strobe value 0-15 to receive software data, external software control;
value16-31 all white; value 32-255 strobe, the larger the value, the
faster the strobe frequency;
Channel 6 Reset The value 0-254 is invalid, the value 255 is reset once, waiting for
the channel to be released,the highest priority;
DMX Code description
DMX code Parameter Action start channel light start channel Channel rang
0 Program pgrade — — —
A 1 7 1-78
B 79 85 79-156
C 157 163 157-234
D 235 241 235-312
E 313 319 313-390
F 391 397 391-468
DMX Channel
Channel Function Function description
Channel 1 Angle mode Control the angle of rotation: the value 0-255 corresponds to 0-360°
(channel 3 value 0-15 is valid)
3 value is 0-15)
Channel 3 Mode selection Value 0-15 angle mode, channel 1 and channel 2 are valid; value
16-31 is infiniterotation mode; value 32-255 is built-in effect mode,
one effect for every 16 values;
Channel 4 Forward and reverse + speed Infinite rotation mode (channel 3 value 16-31), the value 0-126
rotates counterclockwise,the value 127-128 maintains the current
angle, the value 129-255 rotates clockwise;the fastest is 1 second
One lap, the slowest is 5 seconds lap;
Channel 5 Light strobe value 0-15 to receive software data, external software control;
value16-31 all white; value 32-255 strobe, the larger the value, the
faster the strobe frequency;
Channel 6 Reset The value 0-254 is invalid, the value 255 is reset once, waiting for
the channel to be released,the highest priority;
