Working voltage: AC110~220V Output voltage: 24V
Power: 200W Cascaded units: 254pcs
Control mode: ART-NET/DMX Working mode: ARTNET/S Card
Port loading points: 1*680 Product size: 170*90*50mm
Gross weight: 0.8KG Waterproof grade: IP65

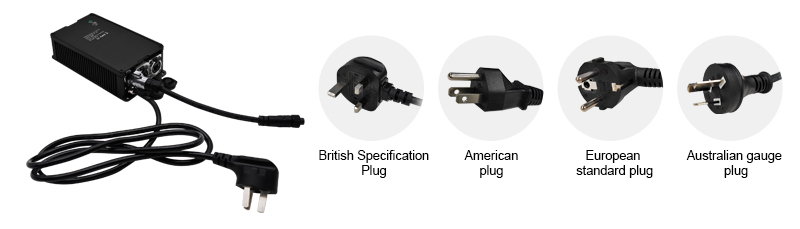

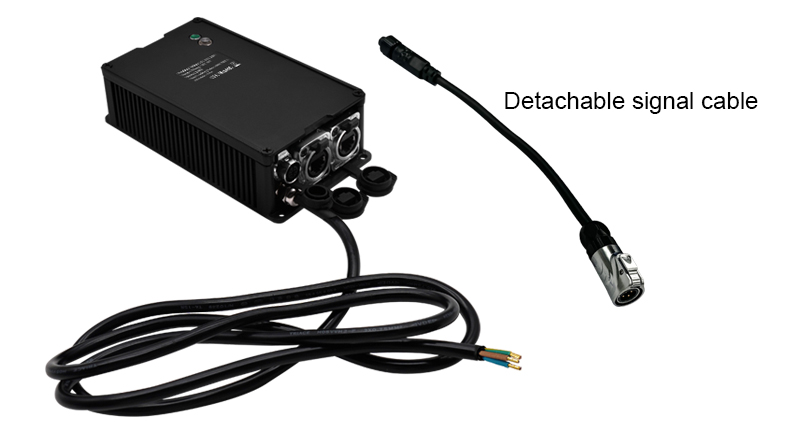

Can replace plugs of Chinese, British, American, European, and Australian standards

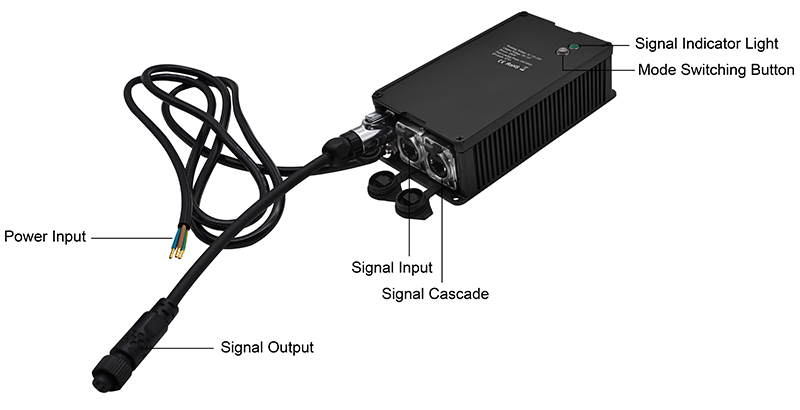

Controller connect lamps
Can replace plugs of Chinese, British, American, European, and Australian standards
Controller connect lamps
Connect the computer and the controller input port, turn on the power;Controller output port connected to lamp input port
Console connect controller
Console connect controller
Connect the console and the controller through the signal conversion board
Multiple units can be used in cascade
Multiple units can be used in cascade
Connect the network cable to the output port and the input port of the next controller
Button operation instructions:
Mode Switch Long press the button for 3S-8S (release the button after it flashes red to complete the
mode switch. Currently, there are two modes: Art-Net and SD card.
SD Card Mode In SD card mode, click the button to switch the built-in effects of the controller.
Upgrade Mode Press and hold the button to power on. Release the button after the button light is on
(the button flashes red and the green signal light is always on). When the green signal light
flashes, the upgrade starts.When the flashing stops, the upgrade is complete.
Factory Restore Long press the button for 10S (release the button after the red and green signal lights are off
to complete the factory reset)
DMX Channel Table Description
Channel Name Figure Instructions
1 Mode selection 000-247 Call internal 31 effects (one effect for every 8 addresses, and 0-7 for
SD card effect 1)
048-255 Switch to ART-NET mode
2 Speed 000-255 0 is the slowest speed, 255 is the fastest speed, SD card mode is valid
3 Brightness 000-255 0 is the brightness off, 255 is the brightest, SD card mode is valid
4 R- mask 000-255 Subtract red from the effect. 000 is the original effect, and 255 means
subtract all red from the effect
5 G- mask 000-255 Subtract green from the effect. 000 is the original effect, and 255 is
subtracting all green from the effect
Button operation instructions:
Mode Switch Long press the button for 3S-8S (release the button after it flashes red to complete the
mode switch. Currently, there are two modes: Art-Net and SD card.
SD Card Mode In SD card mode, click the button to switch the built-in effects of the controller.
Upgrade Mode Press and hold the button to power on. Release the button after the button light is on
(the button flashes red and the green signal light is always on). When the green signal light
flashes, the upgrade starts.When the flashing stops, the upgrade is complete.
Factory Restore Long press the button for 10S (release the button after the red and green signal lights are off
to complete the factory reset)
ARTNET mode: After power-on, the red signal light of the button goes out, the green signal light is always on,
and the green signal light flashes when the Art-Net signal is recognized;
SD card mode: After power-on, the green signal light is always on, the red button is always on,
and the green signal light flashes when the DMX signal is recognized;In SD card mode,
click the button to switch the built-in effect;
and the green signal light flashes when the Art-Net signal is recognized;
SD card mode: After power-on, the green signal light is always on, the red button is always on,
and the green signal light flashes when the DMX signal is recognized;In SD card mode,
click the button to switch the built-in effect;
DMX Channel Table Description
Channel Name Figure Instructions
1 Mode selection 000-247 Call internal 31 effects (one effect for every 8 addresses, and 0-7 for
SD card effect 1)
048-255 Switch to ART-NET mode
2 Speed 000-255 0 is the slowest speed, 255 is the fastest speed, SD card mode is valid
3 Brightness 000-255 0 is the brightness off, 255 is the brightest, SD card mode is valid
4 R- mask 000-255 Subtract red from the effect. 000 is the original effect, and 255 means
subtract all red from the effect
5 G- mask 000-255 Subtract green from the effect. 000 is the original effect, and 255 is
subtracting all green from the effect
6 B- mask 000-255 Subtract the blue in the effect. 000 is the original effect. 255 means
subtract all the blue in the effect
7 Invalid 000-007
Normally on 008-015 Constant bright white, color selection by mask (brightness, mask
channel available)
Stroboscopic 016-255 The higher the value, the faster the strobe (speed, brightness,
mask channel is effective)
8 Invalid 000-200
Record 201-255 When the value of channel 4.5.6 is 255, the recording is valid and the
ART-NET effect is recorded to the file specified by channel
subtract all the blue in the effect
7 Invalid 000-007
Normally on 008-015 Constant bright white, color selection by mask (brightness, mask
channel available)
Stroboscopic 016-255 The higher the value, the faster the strobe (speed, brightness,
mask channel is effective)
8 Invalid 000-200
Record 201-255 When the value of channel 4.5.6 is 255, the recording is valid and the
ART-NET effect is recorded to the file specified by channel
