LED Controller

CL-104PS artnet controller with SD record

1. Input : 110-220v

2. Support artnet control and DMX control

3. 4 Universal 680 pixels

4. Support record effects, wtih 32 kinds of effects

5. Support IC: CL05,CL16,WS2811,SK6812 , DMX, UCS8903, UCS1903...

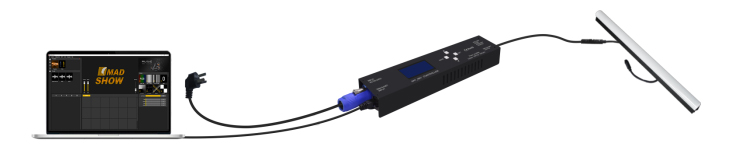

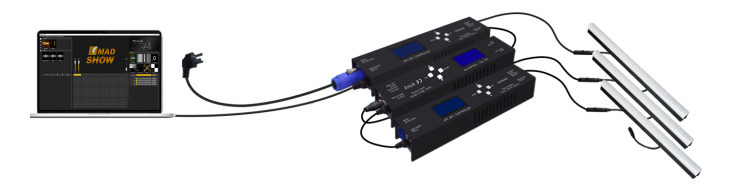

6.Support software:MAD_SHOW,MADMAPPER,MADRIX,RESOLUME,MA2

7.RDM function,sACN controller

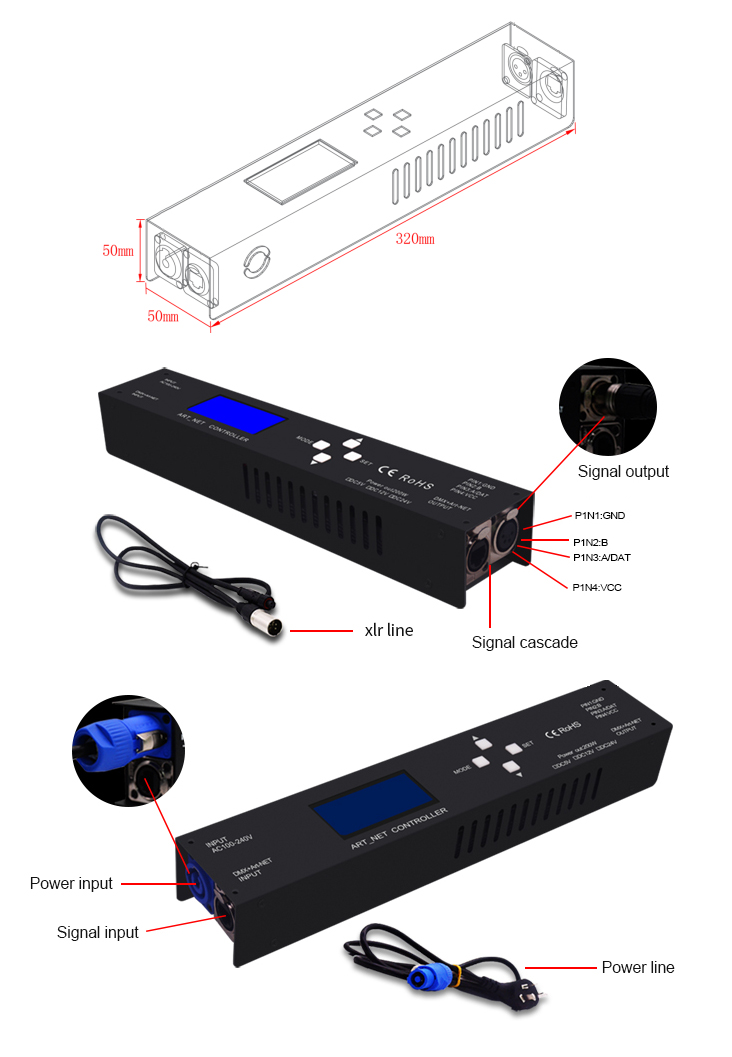

8.size:320*60*49MM(L*W*H)

    Inside with 200wPower supply,

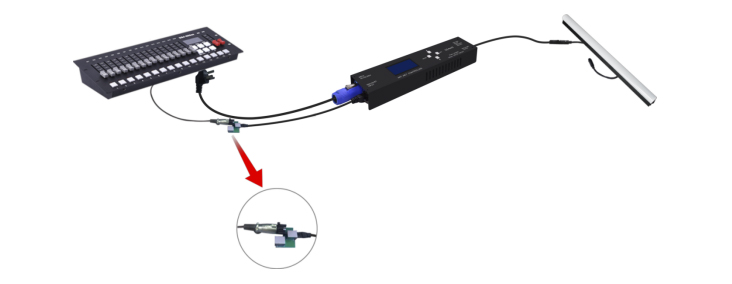

    Support artnet and dmx ,
    support Record effects
    Support Madrix, resolume, Madmapper, Ma Console











    Under the condition of the starting address is 1 set by controller:

    Channel
    Function
    Specification
    Channel 1
    Files selection
    When the figure of DMX is between 0~250, the controller works in SD mode and the file selection is between 1-31.
    When the figure of DMX is 255, it turns into ArtNet mode.

    Channel 2
    Play Speed Control
    0~255,he speed is from slow to fast.
    Channel 3
    Play Brightness  Control
    0~255,When the figure of DMX is dark, as for 255, it is brightest.
    Channel 4
    R color Value of Cover Effect
    0~255,R color value is from brightest to disappeared.
    Channel 5
    G color Value of Cover Effect
    0~255,G color value is from brightest to disappeared.
    Channel 6
    B Color Value of Cover Effect
    0~255,B color value is from brightest to disappeared.
    Channel 7
    Flicker
    The figure of DMX is 0~10: the controller works in SD mode
    The figure of DMX is 11~20: the white color will not flicker, and can work with channel 4-6 to make different color.
    The figure of DMX is 21~255: Flicker mode, larger figure, faster flicker speed, can work with channel 2 to control flicker speed.
    Channel 8
    Effect Recording
    Should work with channel 4~6 when recording effect. The figure of DMX is 129~255: if the figure of channel 4,channel 5, and channel 6 is 255, it will record effect.
    The figure of DMX is 0~128: it work in SD mode or Artnet mode.
