Working voltage: DC5V Output voltage: DC5-24V
Power: 1W Connect method:USB/WiFi
Control mode: ART-NET/DMX/sACN Output port: 1PCS
Port loading pixels: 1*680PCS Working mode: ARTNET/SD Card/TEXT/DMX
Product size(L*W*H): 53*1116*18MM Cascade units: 254
Connect with controller

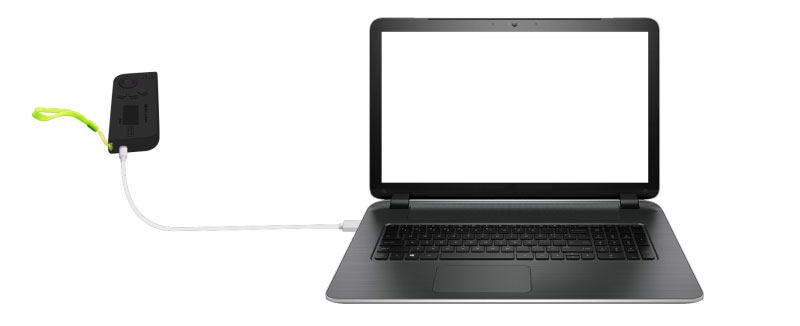

ARTNET USB mode connect with controller
Connect with controller
ARTNET USB mode connect with controller
Computer USB connector connect with controller Type-C connector to give the power to controller and for signal transmission

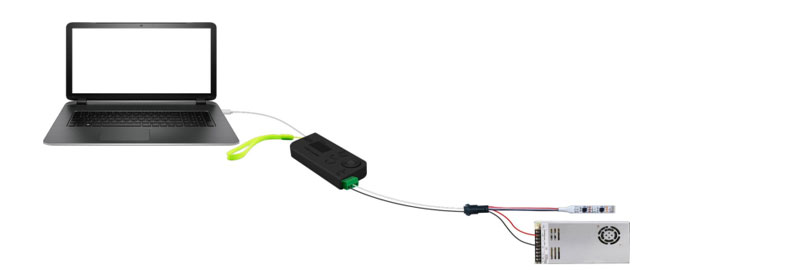

Onnect controller output port with led strip input port
Onnect controller output port with led strip input port
Please notice the wiring order, GND port(black) is the negative wire.

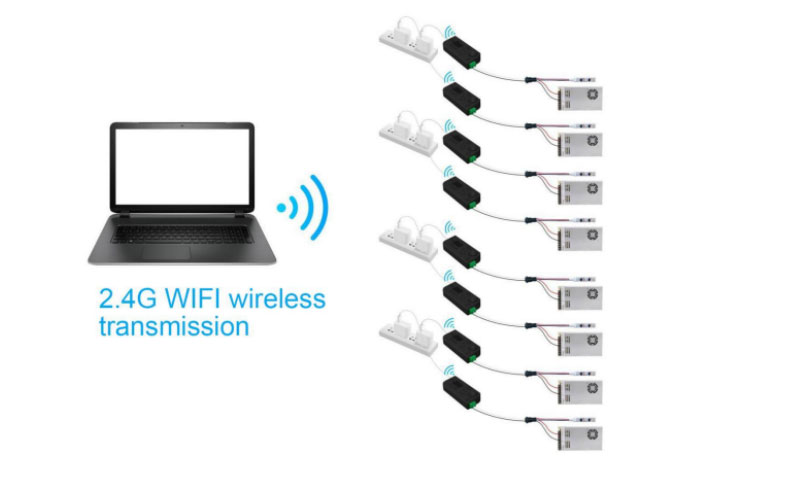

ARTNET WiFi mode connect controller
ARTNET WiFi mode connect controller
Can be connected to multiple controller devices at the same time(2.4G wifi wireless transmission.
When multiple controllers are cascaded, use amplifier to expand the signal transmission range, and each
amplifier can be connected to 30 controllers.
When multiple controllers are cascaded, use amplifier to expand the signal transmission range, and each
amplifier can be connected to 30 controllers.
